Sulfuric Acid Concentration Automatic Control

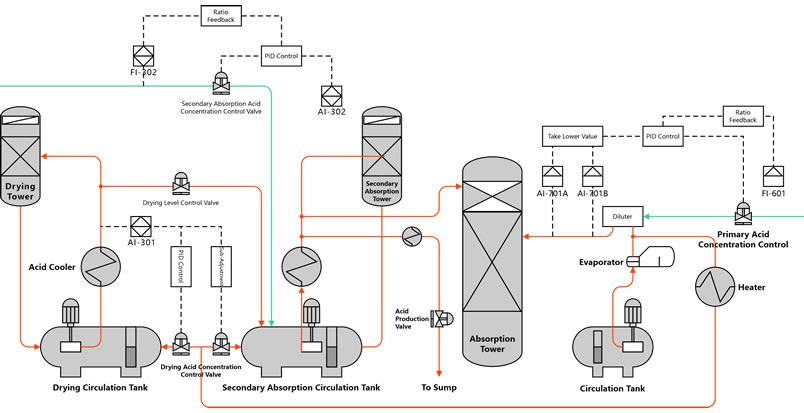

Sulfuric Acid Concentration Control Point

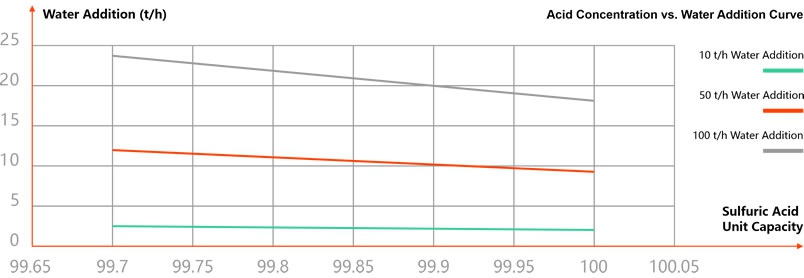

Control Amount Of Sulfuric Acid Adding Water Process

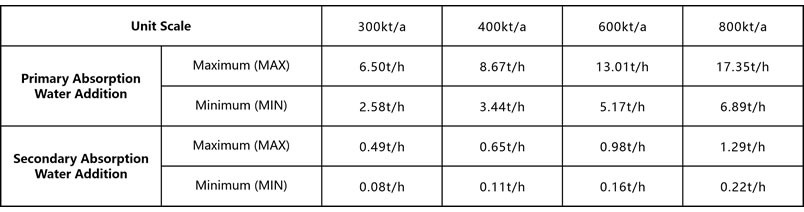

Water Adjustment Range

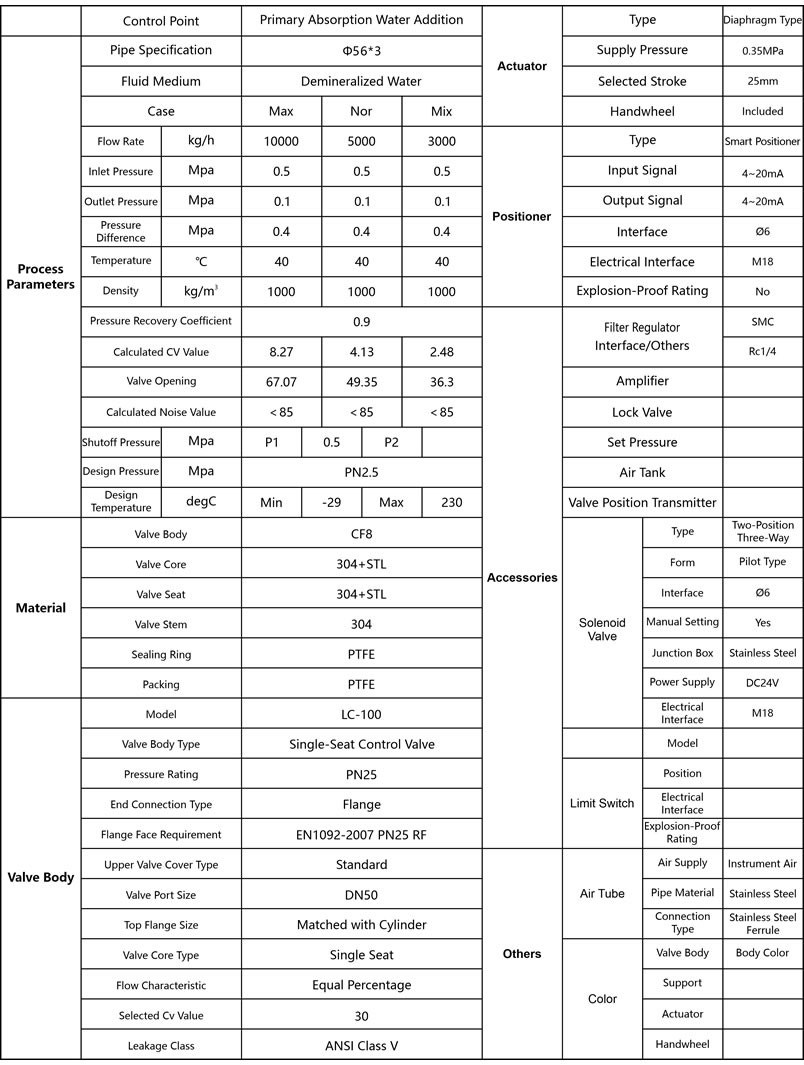

Valve Selection Parameter Table

is the main reason that the sulfuric acid concentration of the regulator can not be automatic is caused by the improper selection of the regulator, to choose the regulator that meets the regulation of the device, it is necessary to be clear about the process parameters of each regulator and the performance parameters of the regulator. The following is the recommended 400Kt/a control valve selection parameters table. Need other device size water control valve selection parameter table, please contact us. We are happy to provide you free of charge.

If you need sulfuric acid device sulfuric acid concentration automatic control solution welcome to consult.
